The Omega Black 720W Plus LED Grow Light is a commercial-grade, high-efficiency horticultural lighting fixture designed for full-spectrum indoor crop cultivation. Engineered with 1,824 high-output diodes, this updated model delivers a photosynthetic photon flux (PPF) of $2088\text{ }\mu\text{mol/s}$ at an energy efficacy of $2.9\text{ }\mu\text{mol/J}$. Featuring an integrated onboard driver, 0–10V dimming control, and RJ11 daisy-chain capabilities, this folding bar fixture offers commercial growers and home cultivators maximum canopy penetration, reduced operating costs, and seamless facility-wide automation.
Technical Specifications & Performance Metrics
| Lighting Attribute | Technical Specification | Cultivation & Operational Advantage |
| Power Consumption | 720W | High-output photon delivery with reduced electrical draw compared to HPS. |
| Photon Efficacy | $2.9\text{ }\mu\text{mol/J}$ | Maximizes usable light per watt, lowering energy bills and HVAC cooling loads. |
| Total Output (PPF) | $2088\text{ }\mu\text{mol/s}$ | Drives deep canopy penetration for high-density flower and vegetative production. |

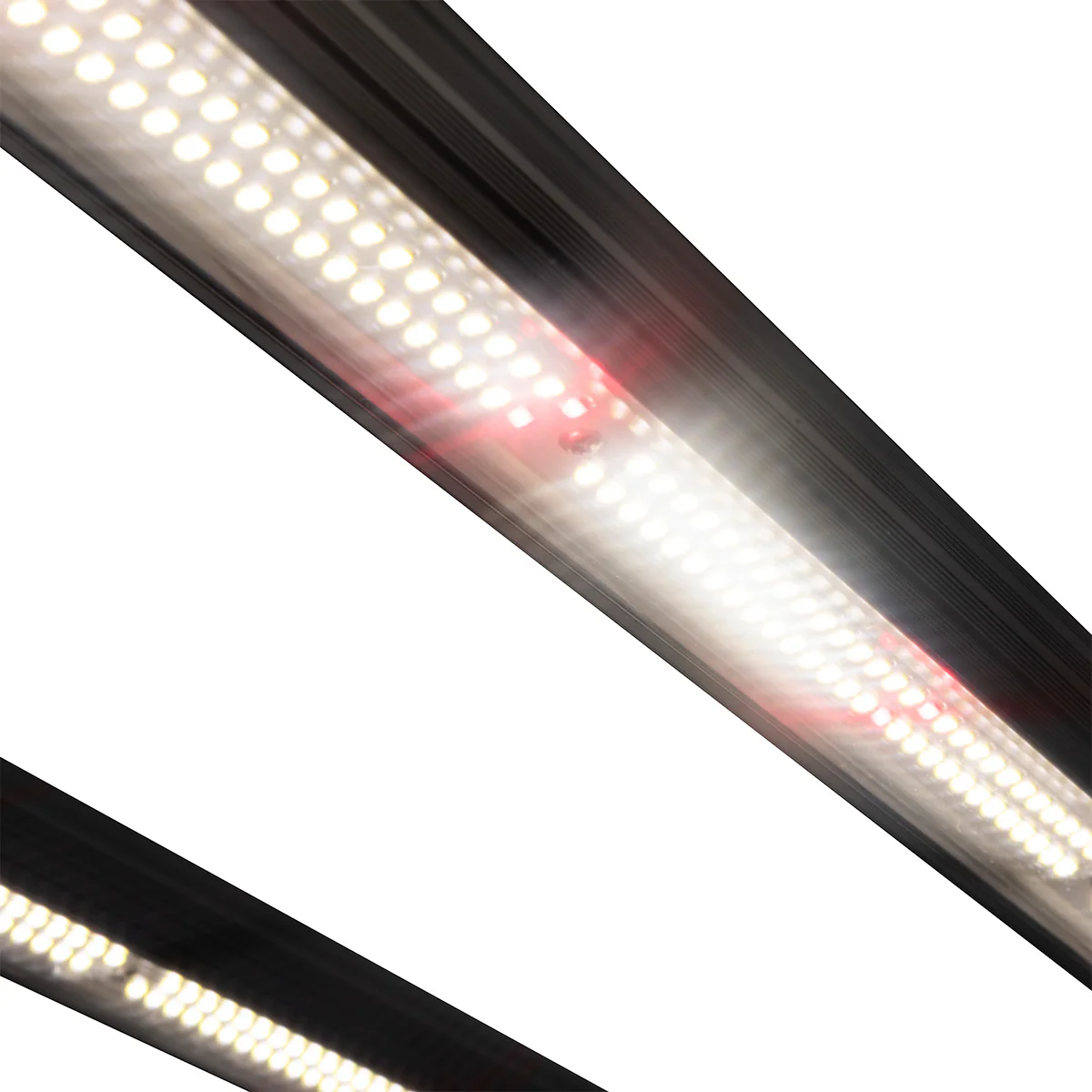

| Diode Configuration | 1,824 High-Efficiency LEDs | Provides uniform light distribution across multi-bar folding arrays. |
| Control Interface | 0–10V Dimming & RJ11 (IN/OUT) | Enables precise light intensity tuning and central master controller integration. |
| Operating Current | 3.16A at 240V (3.45A at 220V / 3.79A at 200V) | Optimizes power efficiency across standard UK commercial electrical setups. |
| Physical Dimensions | 1060mm x 980mm (Folded footprint) | Fits standard 1.2m x 1.2m or 1.5m x 1.5m grow space footprints. |
| Safety Certifications | CE & UKCA Certified | Meets rigorous electrical safety, compliance, and commercial build standards. |
High-Efficacy LED Performance for Commercial Canopy Penetration
Transitioning from traditional high-pressure sodium (HPS) fixtures to advanced solid-state LED arrays is the most effective way to elevate photon density while lowering operational expenditure. The Omega Black 720W Plus produces a massive output of $2088\text{ }\mu\text{mol/s}$, giving plants the light intensity required for aggressive photosynthesis throughout both vegetative growth and bloom phases. Powered by an ultra-efficient $2.9\text{ }\mu\text{mol/J}$ rating, this unit converts electrical energy directly into usable PAR light, reducing radiant heat emission and protecting upper canopy foliage from thermal stress.
Unlike older modular LED setups that require mounting heavy external power supplies, the new Omega Black Plus features a fully integrated driver built directly into the frame. Cultivators outfitting their facilities through the Hydro Land LED grow light collection benefit from simplified overhead mounting, cleaner cable management, and immediate plug-and-play operation.
Advanced Hardware Architecture & Control Features
Compact Folding Design & Integrated Driver
The multi-bar folding design simplifies transport, unboxing, and installation while maintaining extreme structural rigidity when deployed. Built with an internal driver unit directly onto the fixture chassis, this design eliminates additional ballast mounting hardware, ensuring balanced weight distribution and effortless hanging over grow benches and multi-tier racks.

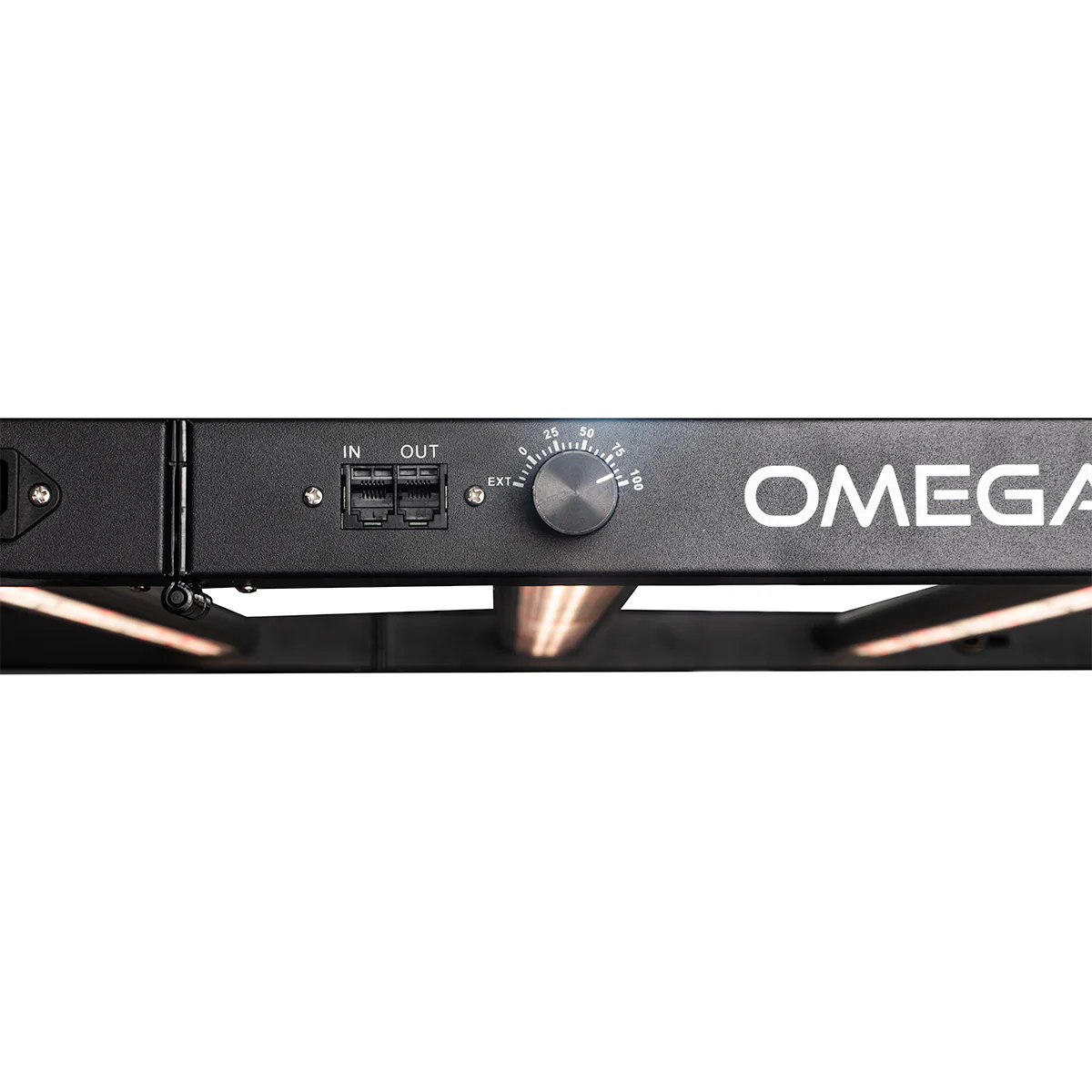

Dynamic 0–10V Dimming & Master Daisy-Chaining
Managing daily light integrals (DLI) across different plant life stages requires flexible intensity control. The onboard 0–10V dimming dial allows growers to dial back wattage for delicate seedlings and clones, ramping up to full 720W output during heavy flowering. Built-in RJ11 input and output ports allow dozens of fixtures to be linked in series, enabling centralized controller management over photo-periods, dimming schedules, and temperature safety shutoffs.
Complete Package Ready for Instant Deployment
Every Omega Black 720W Plus fixture comes fully equipped with essential mounting and power accessories out of the box. Supply packages include heavy-duty rope ratchets for adjustable hanging heights, a 3-meter mains power cable, an RJ11 communication link cable, and a comprehensive instruction manual, allowing seamless integration into grow facilities sourced directly through Hydro Land.
What’s Included in the Box
-
1 x Omega 720W Plus LED Fixture (with integrated power driver)
-
1 x 3m Mains Power Cable
-
1 x RJ11 Controller Link Cable
-
2 x Heavy-Duty Rope Ratchet Hangers
-
1 x User Manual & Installation Guide
Frequently Asked Questions
What footprint coverage does the Omega Black 720W Plus provide?
The fixture is optimized to deliver uniform, edge-to-edge PAR coverage across a 1.2m x 1.2m to 1.5m x 1.5m canopy footprint, making it an ideal direct replacement for standard 1000W HPS fixtures.
Can I connect multiple Omega Black 720W Plus lights to a single master controller?
Yes, the fixture features dual RJ11 ports (IN/OUT) that allow you to daisy-chain multiple units together. Once linked, an external 0–10V lighting controller can manage sunrise/sunset simulations, automated dimming, and global power schedules across your entire facility.
Does the integrated driver generate excess heat over the canopy?
The integrated driver is mounted on an aluminum heat-sink chassis engineered for passive thermal management. Because the fixture operates at $2.9\text{ }\mu\text{mol/J}$ efficiency, ambient heat generation is significantly lower than traditional HPS setups, reducing HVAC cooling demands.
Essential System Integration Accessories
Lighting Controllers & Environmental Monitors
Pairing your fixtures with external lighting controllers unlocks automated DLI management, multi-zone control, and thermal safety cut-offs for commercial facilities.
Heavy-Duty Racking & Grow Enclosures
Suspending the 1060mm x 980mm frame within standard grow enclosures or modular vertical racking channels optimizes light reflection and room space utilization.
Heavy-Duty Power Distribution Boards
Utilizing dedicated timer contactors and power boards ensures safe current delivery during initial power surges across multi-light commercial arrays.
