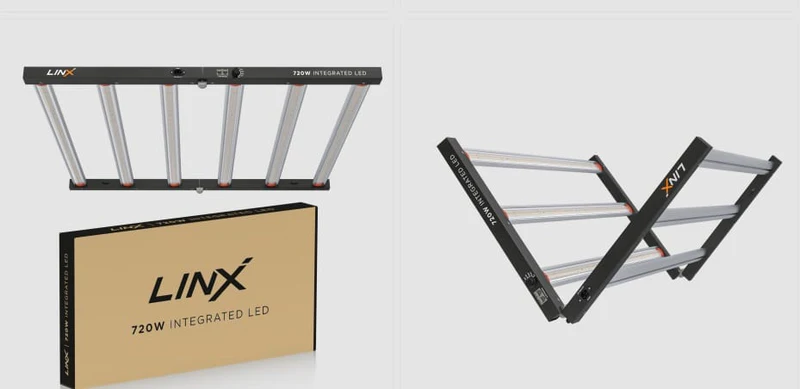

The Linx 720W LED Grow Light is a high-output, full-spectrum horticultural fixture engineered for commercial indoor cultivation, multi-tier racking, and large-scale grow room deployments. Featuring a heavy-duty integrated driver directly mounted to its 6-bar foldable aluminum frame, this fixture eliminates the need for external power boxes or separate ballasts. Equipped with high-efficiency Epistar 2835 full-spectrum diodes combined with 660nm deep red chips, it provides precise photon delivery, manual dimming, and 0–10V daisy-chain controller compatibility for energy-efficient vegetative and bloom cycles.
Technical Specifications & Performance Metrics
| Architectural Attribute | Engineering Specification | Commercial Advantage |
| Power Consumption | 720W High Output | Delivers maximum PAR intensity while replacing legacy 1000W HPS fixtures. |
| Driver Integration | Built-in UL-rated MeanWell / Juson Driver | Streamlines installation and eliminates external ballast wall mounting. |
| Optical Configuration | Epistar 2835 Diodes + 660nm Deep Red | Balanced full-spectrum light drives robust photosynthesis and dense floral growth. |
| Physical Design | 6-Bar Foldable Aluminum Frame | Reduces shipping footprint and allows rapid tool-free assembly in commercial facilities. |
| Dimming Architecture | Manual Dimmer Knob + 0–10V Controller Port | Enables precise canopy intensity tuning and automated multi-fixture master control. |
| Electrical Input | Standard UK IEC Power Cable Options | Plug-and-play installation for UK commercial grow facilities and tents. |
High-Efficiency Full-Spectrum Lighting for Scalable Facilities
Transitioning from traditional high-intensity discharge lighting to LED architecture requires high photon flux density, long-term diode reliability, and reduced thermal output. The Linx 720W LED fixture delivers a broad spectral output tailored specifically to plant photomorphogenesis. By blending high-efficiency Epistar 2835 white diodes with targeted 660nm deep red chips, this light accelerates vegetative node development during early growth and drives heavy, resinous flower production in late bloom.
Standard multi-bar grow lights often require bulky remote ballasts that add thermal load to grow room walls and complicate wire routing. Operators outfitting their rooms through the Hydro Land grow lights catalog benefit from the sleek integrated driver setup of the Linx 720W. Mounting the driver directly onto the central frame minimizes total system wiring, accelerates room setup time, and simplifies rack management across multi-tier facilities.
Engineered for Commercial Scalability & Facility Efficiency
Integrated Driver Architecture & Simplified Installation
The built-in MeanWell / Juson UL-certified driver converts power efficiently directly on the chassis without requiring external mounting brackets or long, messy extension leads. Supplied with UK-standard IEC power options, this fixture allows commercial crews to mount, hang, and power up large light arrays in a fraction of the time needed for traditional multi-component lighting setups.
Foldable 6-Bar Design & Uniform Thermal Management
Built on a 6-bar aluminum alloy footprint, the Linx 720W evenly spreads light across 1.2 m × 1.2 m to 1.5 m × 1.5 m canopy footprints without creating severe central hotspots. The passive cooling design of the open aluminum bars dissipates heat rapidly into the ambient environment, protecting diode life and reducing the cooling demand placed on facility HVAC equipment. The central hinge mechanism allows the fixture to fold completely flat for compact transport, storage, and hassle-free maneuvering down narrow grow room aisles.
Dynamic Manual Dimming & 0–10V Central Master Control
Every unit is fitted with a built-in manual control knob to dial in light intensity from early propagation down to lower power levels without swapping fixtures. For enterprise-level deployments, integrated 0–10V control ports allow growers to daisy-chain dozens of lights together to a single master controller. Facility managers sourcing equipment from Hydro Land can automate sunrise/sunset simulations, scheduled dimming cycles, and emergency high-temperature shutoffs across entire lighting zones.
Recommended Deployment & Operating Protocols
Hanging Height and Coverage Recommendations
For optimal vegetative development, hang the Linx 720W at 24 to 30 inches above the plant canopy and set the manual dimmer to 50–75%. During peak flowering, lower the fixture to 18 to 24 inches above the canopy and run at 100% output to drive maximum photosynthetic photon flux density (PPFD) across your crop envelope.
Automated Daisy-Chain Controller Wiring
To connect multiple Linx 720W units under centralized control, run standard RJ cables from the output port of your primary controller into the 0–10V input port of the first fixture, then daisy-chain subsequent units via their output ports. Switch the onboard dimmer knob to “EXT” mode to hand over manual control to your master environmental controller.
HVAC and Environmental Thermal Management
Because the integrated driver and aluminum bars emit low radiant heat directly onto the plant canopy compared to legacy HPS fixtures, facility operators should monitor ambient room temperatures closely. Maintaining ambient air temperatures around 26°C–28°C under LED lighting ensures active plant transpiration and rapid nutrient uptake.
Frequently Asked Questions
Does the Linx 720W LED require a separate ballast or power box?
No, the fixture features an integrated built-in driver directly mounted to the central frame, making it a completely self-contained plug-and-play unit.
What spectral diodes are used in the Linx 720W fixture?
The light utilizes high-efficiency Epistar 2835 full-spectrum diodes combined with 660nm deep red chips to provide a comprehensive light spectrum for both vegetative growth and heavy bloom phases.
Can I control multiple Linx 720W lights using a single central controller?
Yes, each unit features 0–10V external control ports that allow you to daisy-chain multiple fixtures together and manage light schedules and dimming levels from a single master controller.
Essential System Integration Accessories
0–10V Master Lighting Controllers
Pairing your Linx fixtures with automated master controllers unlocks custom light schedules, sunrise/sunset dimming curves, and automatic thermal safety cutoffs.
Heavy-Duty Ratchet Hangers
Utilizing adjustable heavy-duty rope ratchets makes adjusting fixture height easy as your plant canopy develops throughout the crop cycle.
Hydroponic Drainage & Tent Systems
Deploying Linx 720W LED fixtures above high-performance drainage tables or commercial grow tents ensures maximum light reflection and efficient room environmental control.
